Diagnostics

This page presents several examples illustrating the use of diagnostic routines included in this package. The available functions are included in the pyqg_jax.diagnostics module.

%env JAX_ENABLE_X64=True
import functools
import jax
import jax.numpy as jnp
import matplotlib.pyplot as plt
import powerpax
import pyqg_jax

env: JAX_ENABLE_X64=True

We will illustrate the use of these routines on an sample trajectory. To begin we construct a QGModel and produce an initial state.

stepped_model = pyqg_jax.steppers.SteppedModel(
    model=pyqg_jax.qg_model.QGModel(
        nx=64,
        ny=64,
    ),
    stepper=pyqg_jax.steppers.AB3Stepper(dt=14400.0),
)
stepper_state = stepped_model.create_initial_state(
    jax.random.key(0)
)

Next, we produce the trajectory. To reduce the required memory we will not keep each step. Instead we will use powerpax.sliced_scan() to subsample them keeping states only at regular intervals. We also collect the time for each step for use in plotting.

@functools.partial(
    jax.jit,
    static_argnames=["num_steps", "start", "stride"]
)
def roll_out_state(init_state, num_steps, start, stride):
    def loop_fn(carry, _x):
        current_state = carry
        next_state = stepped_model.step_model(current_state)
        return next_state, (next_state.state, next_state.t)

    _, (traj, t) = powerpax.sliced_scan(
        loop_fn,
        init=init_state,
        xs=None,
        length=num_steps,
        start=start,
        step=stride,
    )
    return traj, t

traj, t = roll_out_state(
    stepper_state, num_steps=10000, start=0, stride=250
)

traj

PseudoSpectralState(qh=c64[40,2,64,33])

Note that the trajectory has a leading dimension for the steps just as in Basic Time Stepping.

Total Kinetic Energy

The function pyqg_jax.diagnostics.total_ke() can be used to calculate the total kinetic energy in a particular state (see the function’s documentation for information on scaling the value to reflect a particular density).

The provided function operates only on one state at a time so here we use powerpax.chunked_vmap() to vectorize it across several states at once. This function is used to limit the number of steps computed in parallel to reduce peak memory use in cases of a very long trajectory. The value of chunk_size should be configured to balance performance on GPUs against the memory required for the intermediate buffers. Alternatively jax.vmap() could also be used to compute the diagnostic across steps.

def compute_ke(state, model):
    full_state = model.get_full_state(state)
    return pyqg_jax.diagnostics.total_ke(full_state, model.get_grid())

@jax.jit
def vectorized_ke(traj, model):
    return powerpax.chunked_vmap(
        functools.partial(compute_ke, model=model), chunk_size=100
    )(traj)

traj_ke = vectorized_ke(traj, stepped_model.model)

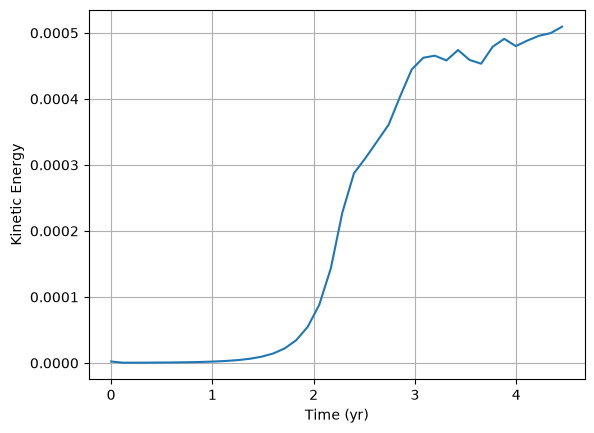

Finally we can plot the kinetic energy for each simulation step against the simulation time in years.

plt.plot(t / 31536000, traj_ke)
plt.xlabel("Time (yr)")
plt.ylabel("Kinetic Energy")
plt.grid()

CFL Condition

The function pyqg_jax.diagnostics.cfl() computes the CFL condition value of a particular step at each location in the grid. The sample function below vectorizes it across several steps (with chunked_vmap()). The code below also demonstrates reporting the highest CFL value for a given step using jnp.max.

def compute_cfl(state, model, dt):
    full_state = model.get_full_state(state)
    cfl = pyqg_jax.diagnostics.cfl(
        full_state=full_state,
        grid=model.get_grid(),
        ubg=model.Ubg,
        dt=dt,
    )
    return jnp.max(cfl)

@jax.jit
def vectorized_cfl(traj, stepped_model):
    return powerpax.chunked_vmap(
        functools.partial(
            compute_cfl, model=stepped_model.model, dt=stepped_model.stepper.dt
        ),
        chunk_size=100,
    )(traj)

traj_cfl = vectorized_cfl(traj, stepped_model)

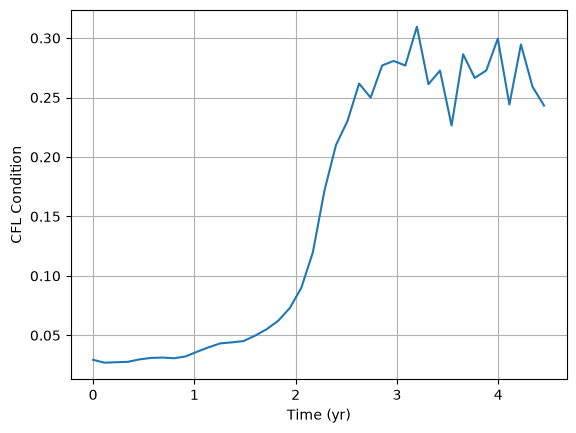

Finally, we plot the CFL values for each step.

plt.plot(t / 31536000, traj_cfl)
plt.xlabel("Time (yr)")
plt.ylabel("CFL Condition")
plt.grid()

Kinetic Energy Spectrum

The function pyqg_jax.diagnostics.ke_spec_vals() produces an array per time step which can be averaged over a trajectory and processed into an isotropic spectrum with pyqg_jax.diagnostics.calc_ispec(). The code below demonstrates this processing.

def compute_ke_spec_vals(state, model):
    full_state = model.get_full_state(state)
    ke_spec_vals = pyqg_jax.diagnostics.ke_spec_vals(
        full_state=full_state,
        grid=model.get_grid(),
    )
    return ke_spec_vals

@jax.jit
def vectorized_ke_spec(traj, model):
    traj_ke_spec_vals = powerpax.chunked_vmap(
        functools.partial(compute_ke_spec_vals, model=stepped_model.model),
        chunk_size=100,
    )(traj)
    ke_spec_vals = jnp.mean(traj_ke_spec_vals, axis=0)
    ispec = pyqg_jax.diagnostics.calc_ispec(ke_spec_vals, model.get_grid())
    kr, keep = pyqg_jax.diagnostics.ispec_grid(model.get_grid())
    return ispec, kr, keep

traj_ke_spec, kr, keep = vectorized_ke_spec(traj, stepped_model.model)

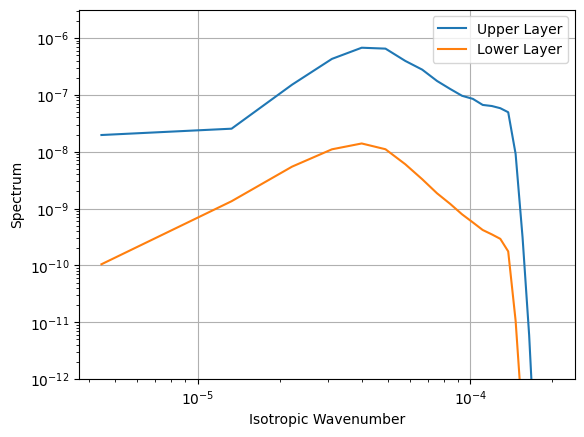

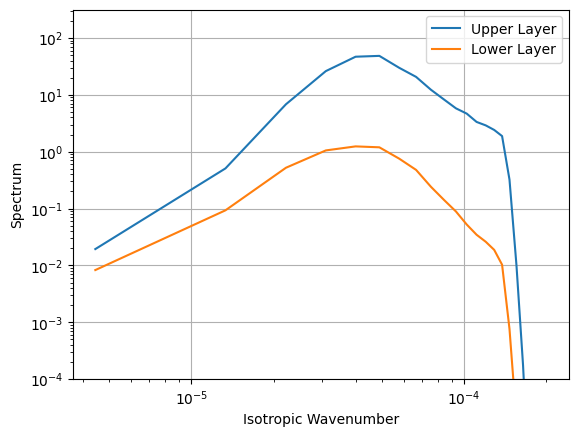

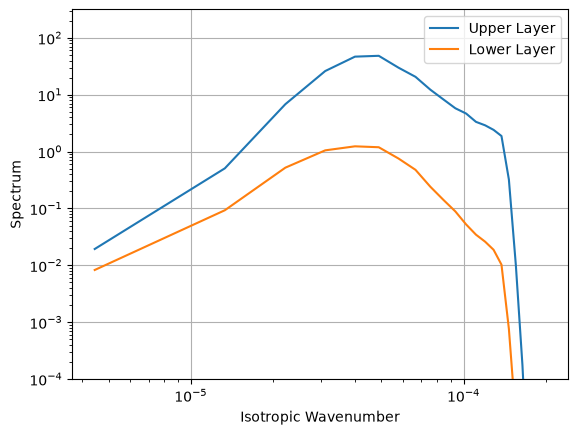

Finally we plot the resulting spectrum, one spectrum for each layer. Note the use of the keep value to slice the spectrum values before plotting.

for layer, name in enumerate(["Upper", "Lower"]):
    plt.loglog(kr[:keep], traj_ke_spec[layer, :keep], label=f"{name} Layer")
plt.xlabel("Isotropic Wavenumber")
plt.ylabel("Spectrum")
plt.ylim(10**-4, 10**2.5)
plt.legend()
plt.grid()
